HDI PCB

Layer:16

Application:Automotive

HDI

Thickness:2.4mm

vias Fill and plate

min trace/space:0.08/0.08mm

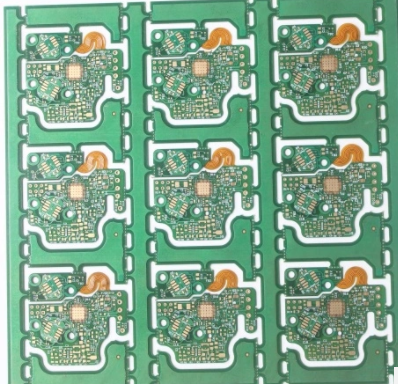

Rigid-flex PCB

Layer:4

Type:Rigid-flex

Application: Consumer Electronics

FR4+PI ,1.2+0.2mm

Inner layers are flex part

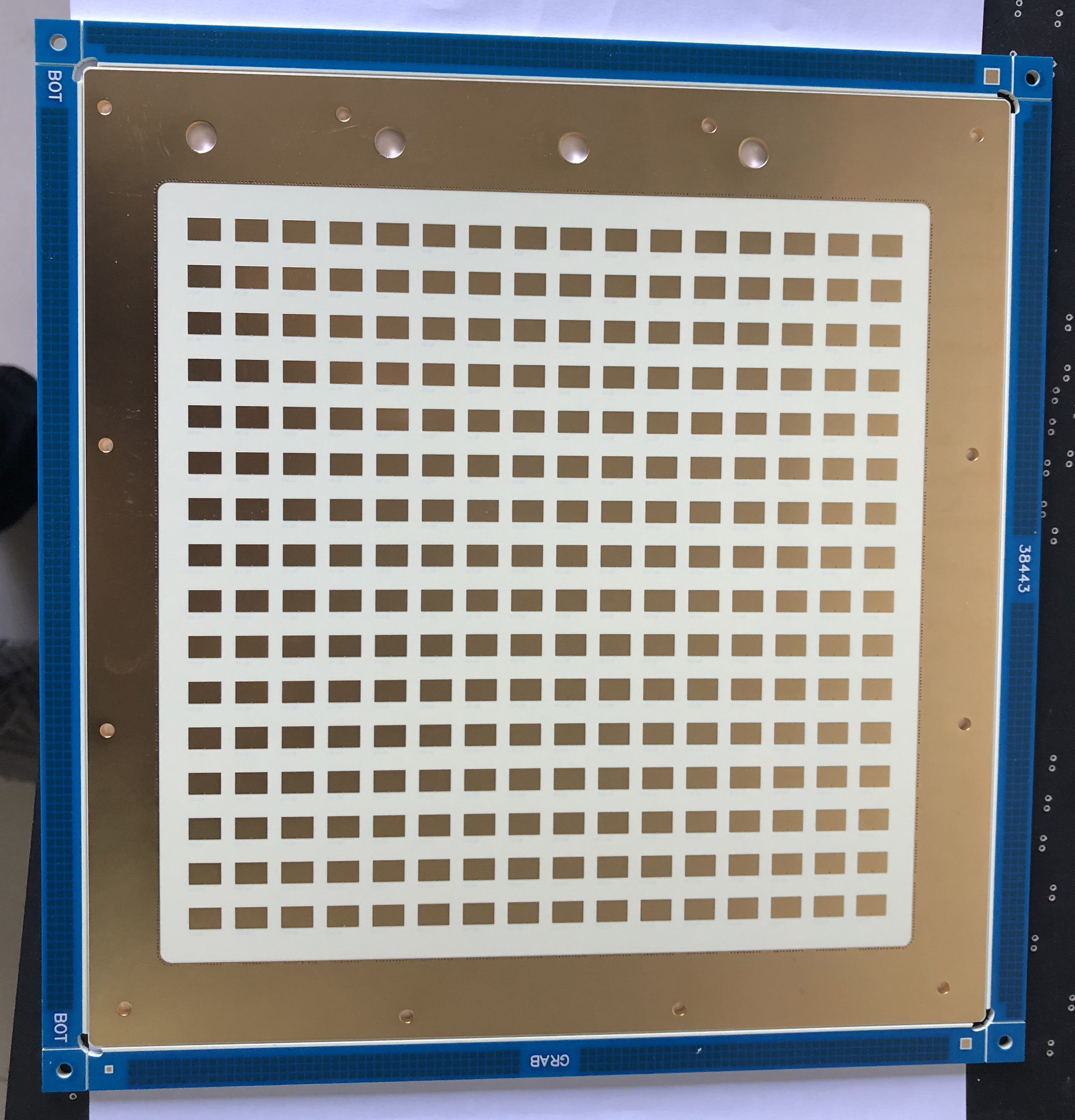

RF PCB

Layer:12

Material:RO4350B

Thickness:2.6mm

Application:Satellite

Full Gold at bottom side

Blind:L1-L2 ,L1-L6

Order Now

HDI Lead Time

PCB Service

PCB Manufacturing

Storm Circuit offers full-feature PCB
production services with high reliability to be totally compatible with your requirement.Business covers rigid FR4 PCBs, HDI PCBs, FPC, Aluminum PCBs, Rogers PCBs, ENEPIG PCBs,Large PCBs.

a) Expanded manufacturing capabilities

b) Rigorous quality control options

c) Value-added options: FREE DFM and more

PCB Assembly

Covering PCB fabrication, parts sourcing, SMT and/or THT assembly, one-stop turnkey PCBA services offered by Storm Circuit can be flexibly combined to meet your project’s scope, quality, schedule and budget needs.

a) 01005, 0201, 0.4mm pitch BGA

b) AOI, X-ray, FAI, Flying probe

c) 100% Original &New Components

d) Box build assembly, IC programming

PCB Assembly Service

Our Valued customers

Storm Circuit Tech Ltd is a professional PCB manufacturer in China, focus on top quality ,quick turn and turnkey service for HDI PCB ,RF PCB/High frequency PCB and Rigid-flex PCB .while You focus on your products development and sales, we can solve the production issues and ensure quality. Prototypes and small volume can be deliveried in 3 days from 4 layer to 8 layer. 4 Layer HDI PCB and High frequency PCB can be finished as fast as in 3 days.Rigid-flex PCB /Rogers PCB ,we can ship in 3 days for 2 layer and 12 layer Rogers PCB can be in 8 days.

2022-11-08

넷 IPC4761 via type ---Filled & Covered Via

2022-06-23

넷 0.38MM PITCH CSP PCB MADE BY STORM PCB

2022-06-20

넷 Do Not Layout like this

2022-06-18

넷 10 Layer PCB with 13mm ,4oz inner layers and blind vias

2022-12-01

넷 High speed PCB material Selection Guideline

2022-10-21

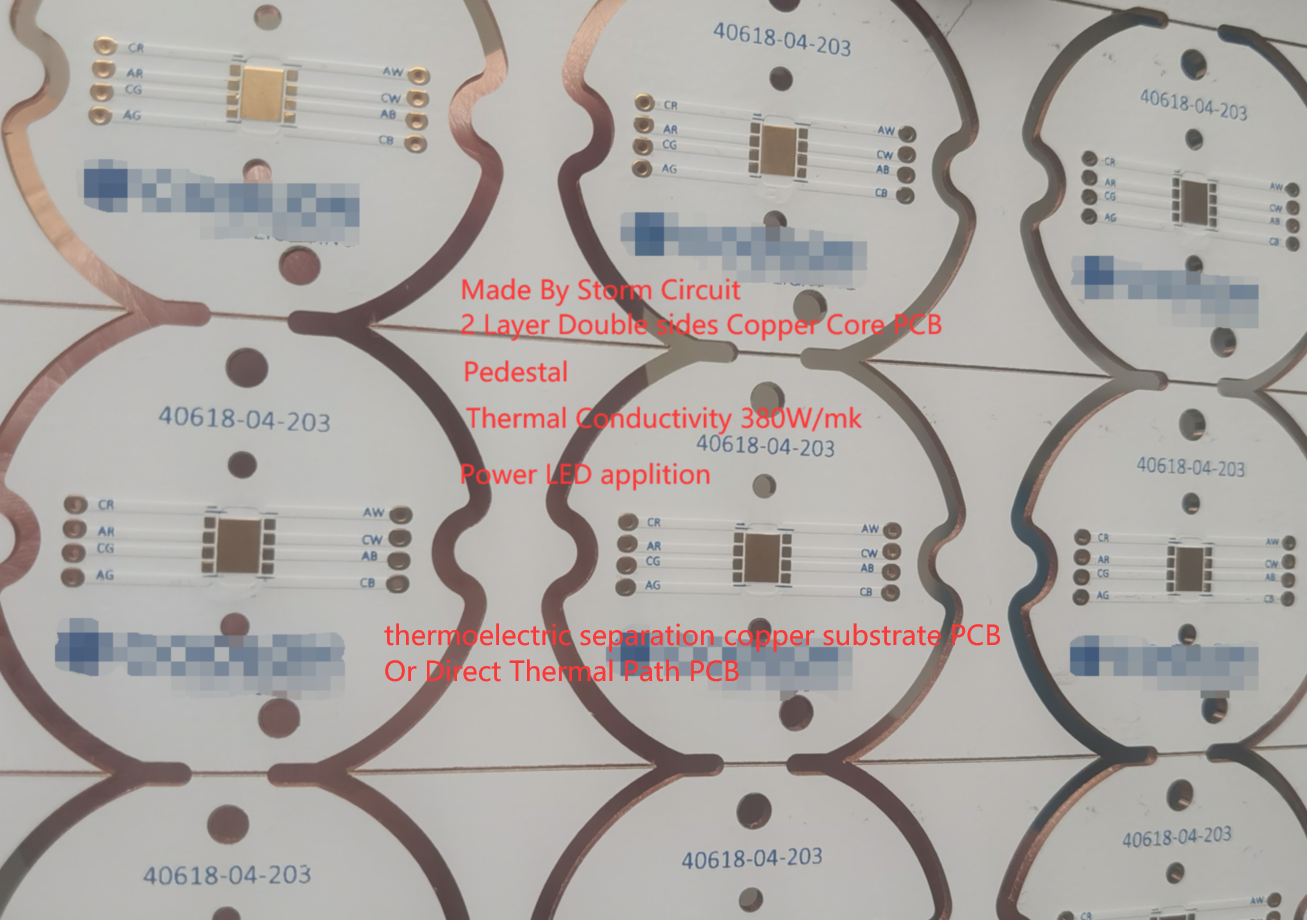

넷 2 layer double sided copper core --Thermal Direct PCB
